       CHDD - CENTER HUNG DOUBLE DEPTH REEL RACKING

HEAVY DUTY REEL DISPENSING SYSTEM UP TO 10,000 LBS.


VIDEO:
Upper Reel Safety Lock
Unlock and keep open
for loading and unloading

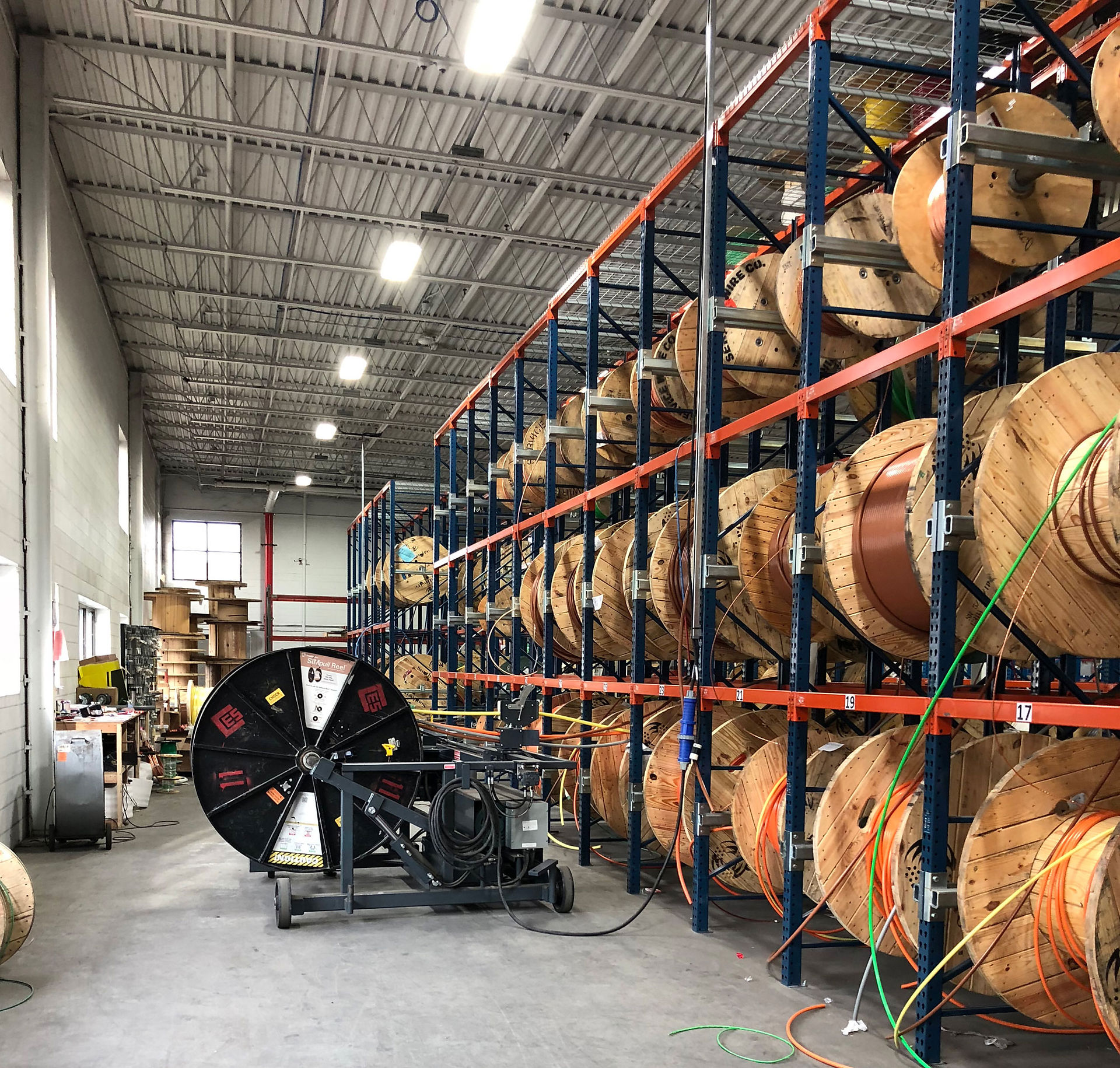

CHDD REEL RACKING

GRAHAM  ADVANTAGE STANDARD FEATURES:​

​

  • Wearproof - Replaceable And Inexpensive Inserts

  • Safety - Should Never Wear Out - Axles or Brackets

  • Value - Buy Once, Should Never Wear Out!

  • Safety - Ball Detent Pin Over Axle Keeps Reels In Place

  • Quiet - Wearproof Inserts Reduce Warehouse Noise

  • Stable - Center Hung Allows For Equal Weight Distribution On All 4 Columns

  • Efficient - Organize Reel Storage And Dispensing - Get Reels Off The Floor

  • Solid Steel Reel Adapter Bushings and Collars Included

  • Floor Plan Design Available - Let Us Help

  • Configurable - To Suit Your Warehouse and Reels

Organize, Store and Dispense Reels Safely and Quietly.

Note:  All Upright Frames must be anchored to the floor.

​

   Racking Information Required For Quote

  • Ceiling Height or Rack Height Required

  • Maximum Reel Diameter

  • Maximum Reel Width (Outside Flange to Outside Flange)

  • Maximum Reel Weight

  • Do you need overhead storage

  • Wire Room Layout Drawings Available

   CHSD Reel Rack  -  Add 9” to your max reel width to determine Section Width

​

    OPTIONS

  • Upper Reel Safety Locks (CH-URL) are safely operated from the floor

  • Additional Center Hung Reel Hanging Hardware

  • Front Hung (SD) Reel Hanging Hardware

  • DDR Guides - Guides Wire From Double Depth Back Reels

  • Reel Loading Cradles

  • Replacement Inserts

  • Replacement Axle Retainer Pins​​​

  • Inventory Card Holders

  • Inventory Cards
