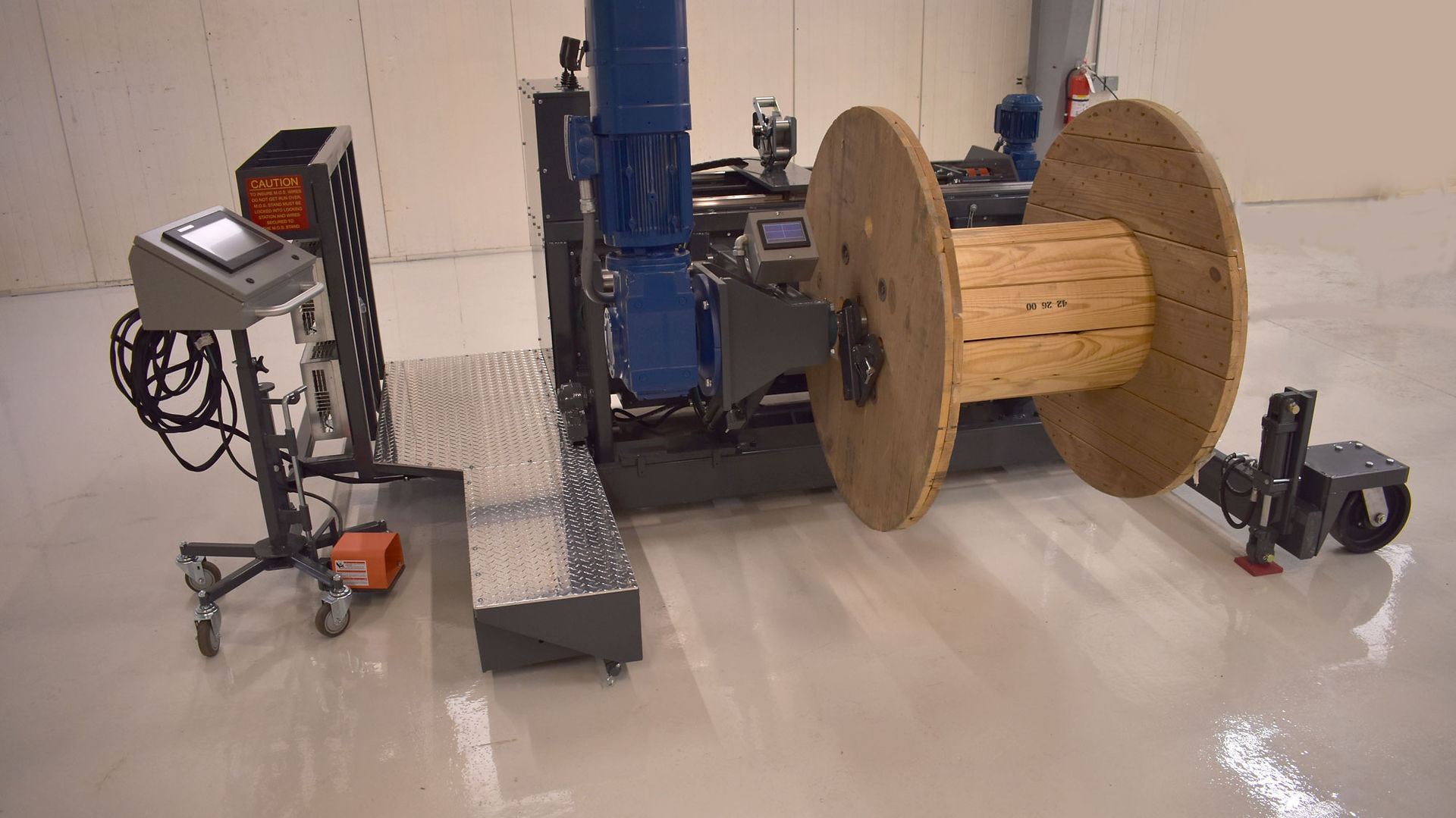

E125T Series SHAFTLESS AND SELF PROPELLED REEL TAKEUP MACHINE

Reel Capacity: 60" Diameter x 34" Wide X 10,000 lb.  -  6,000 to 40,000 LB. Pulling Capacities

not shownE126T Series Shaftless Machine Capacity: 72" Diameter x 42" Wide x 10,000 lbs.

Shaftless & Self Propelled Reel TakeUp Machine

Reel Capacity: 60” Dia.34” Wide X 10,000 lb.

​



Graham Advantage Standard Features​​​

  • Shaftless

  • Self Propelled - Dual Joy Stick Controlled - Zero Turn

  • Holding Brake Motor - Maintains Tension

  • Mobile Operator Station - "MOS"

  • HMI Controlled

  • Safety Foot Switch Transported In MOS

  • Automatic Floor Lock Brakes

  • Easy Rolling Wheels and Casters

  • Large Steel Tool Trays

  • Solid Steel Reel Adapter Bushings & Storage

  • Excellent Customer Service

  • 2 YEAR COMPONENT WARRANTY

  • 5 YEAR CRAFTSMANSHIP WARRANTY

​​

More Standard Features​

  • Heavy Duty Tubular Steel Frame

  • Electric Mechanical Reel Drive HMI Controlled

  • Dynamic Braking on Reel Drive

  • Holding Brake on Reel Drive Motor

  • Adjustable Height HMI Control on MOS

  • Variable Speed 0 to 60 RPM

  • Stop To Length

  • Automatic Wire Traverse

  • Measuring Device

  • Double Acting Cylinders - Powered Up & Down

  • Safety Valve so Reels Cannot Drift Down once raised

  • Power Wire Traverse (Level Wind)

  • Two Sets of Reel Adapter Bushings

  • 240/480 Volt 3 Phase - Please Advise



Options Available​​

  • Paralleling Wire Guides

  • Stretch Wrap Dispenser Mount

  • Paralleling Reels

  • Extra Shelves for Tools, Printers and Devices

  • 120v Power Outlets

​

POWER OPTIONS

  • E125T10 - 10,000 LB. Pull

  • E125T20 - 20,000 LB. Pull

  • E125T40 - 40,000 LB. Pull
